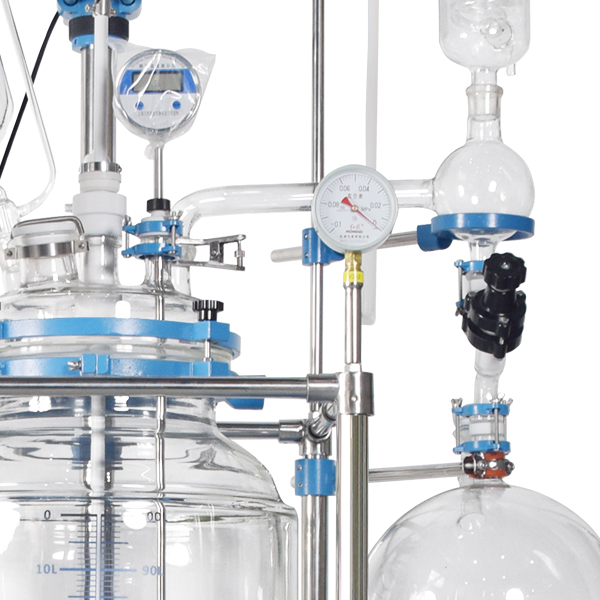

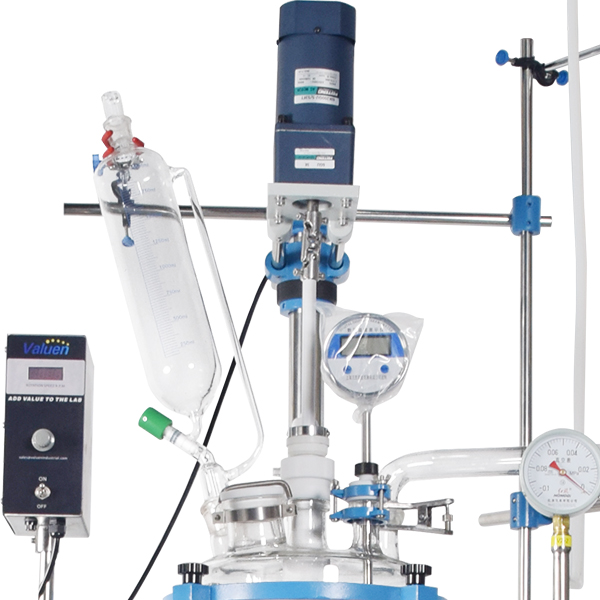

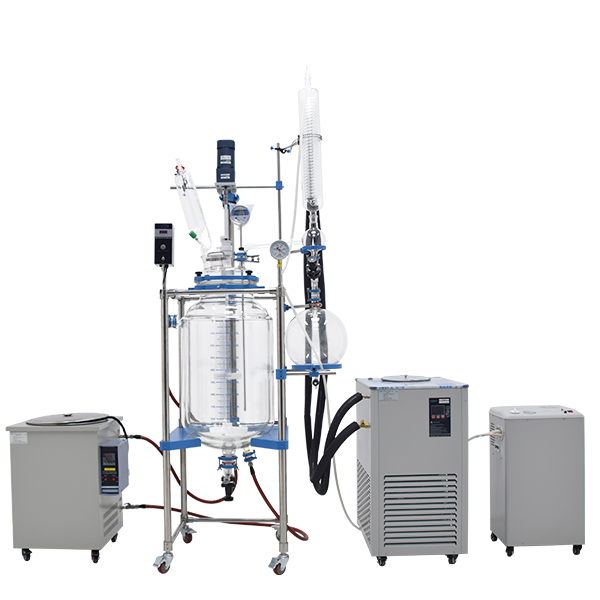

100L Jacketed Glass Reactor

The reactor is a vessel used for reactions, which cools and heats the inner vessel by using cooling and heating liquids; the temperature of the reactants in the inner vessel is controlled by the jacket design, allowing the materials inside the reactor to react at the desired temperature. It has versatile functions of herbal extraction, mixing, synthesis, concentration, solvent recovery, decarboxylation and so on.

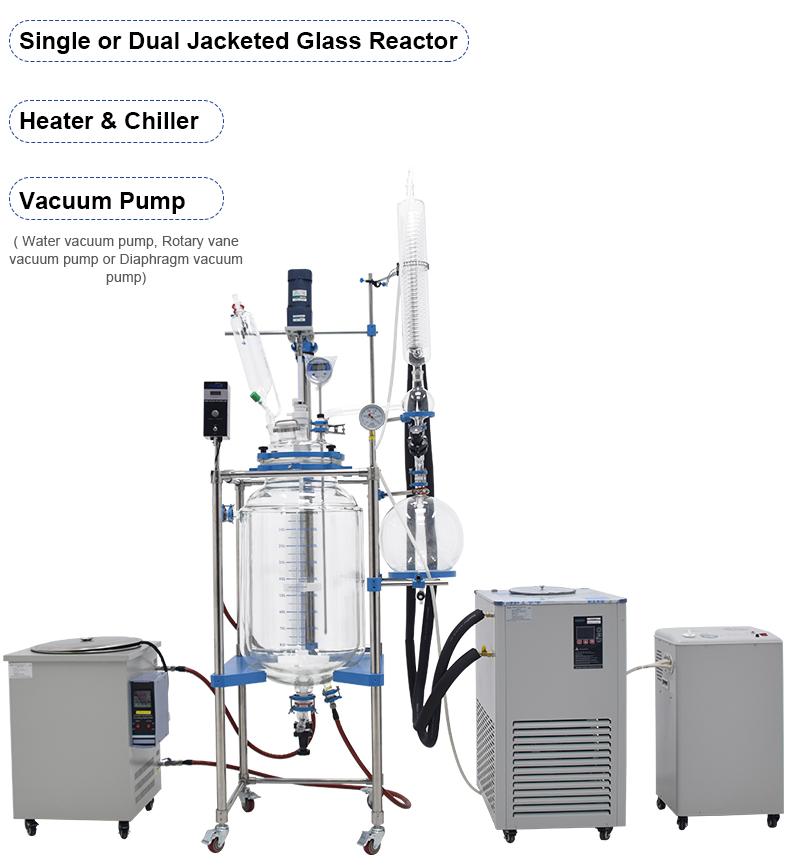

We offer glass reactors of various specifications, ranging in volume from 1L to 100L. The product can be matched with vacuum pump, circulating chiller, circulating heater, and compound heating and cooling circulator to form turnkey set.

Features

Sanitary grade & heat/ cold/ chemical resistant high borosilicate glass
High thermal shock resistance and mechanically stable design
Quicky set-up and Easy maintenance
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
Easy configurable for different applications
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability

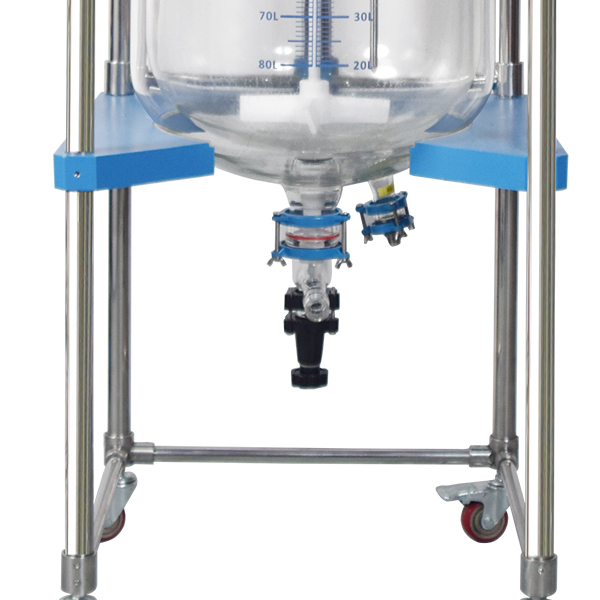

Quality PTFE plunger drain valve makes thoroughly draining


Availability:



Inquiry Email

Model:
VJR100G
Brand:
Valuen

Product Overview

Product Parameter

About US

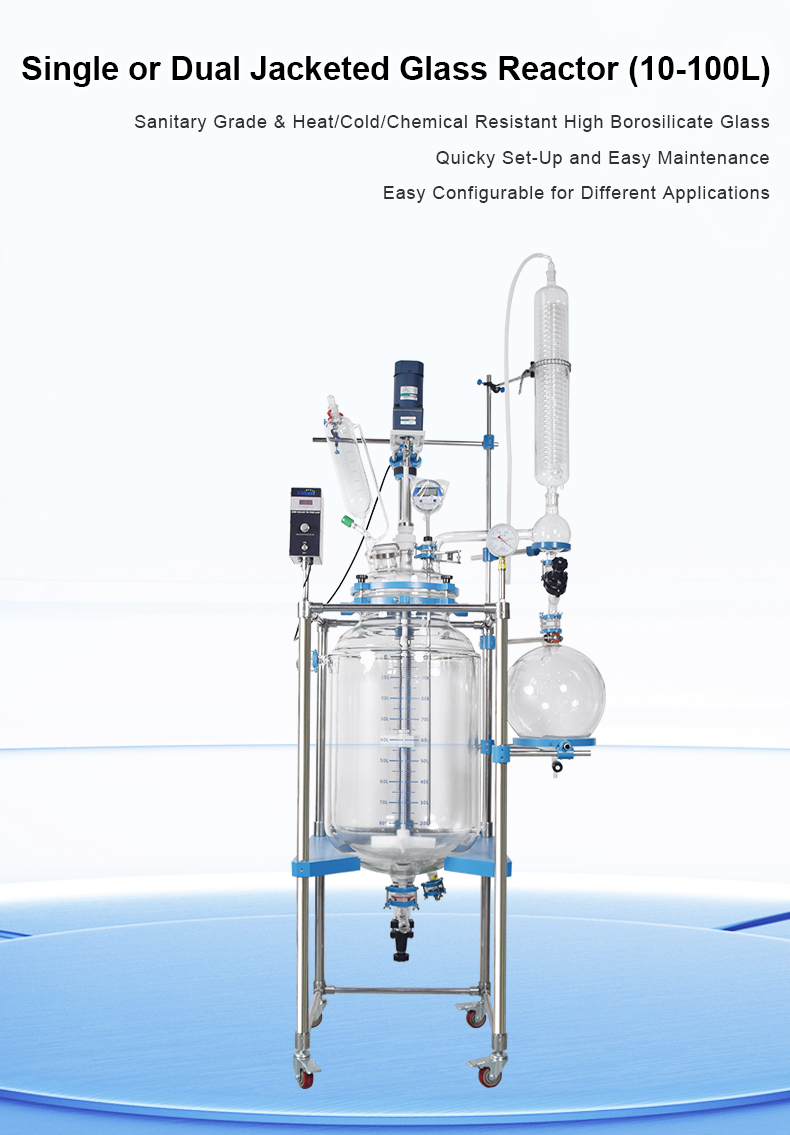

3-10L-100L反应釜_01

stainless steel reactor_09

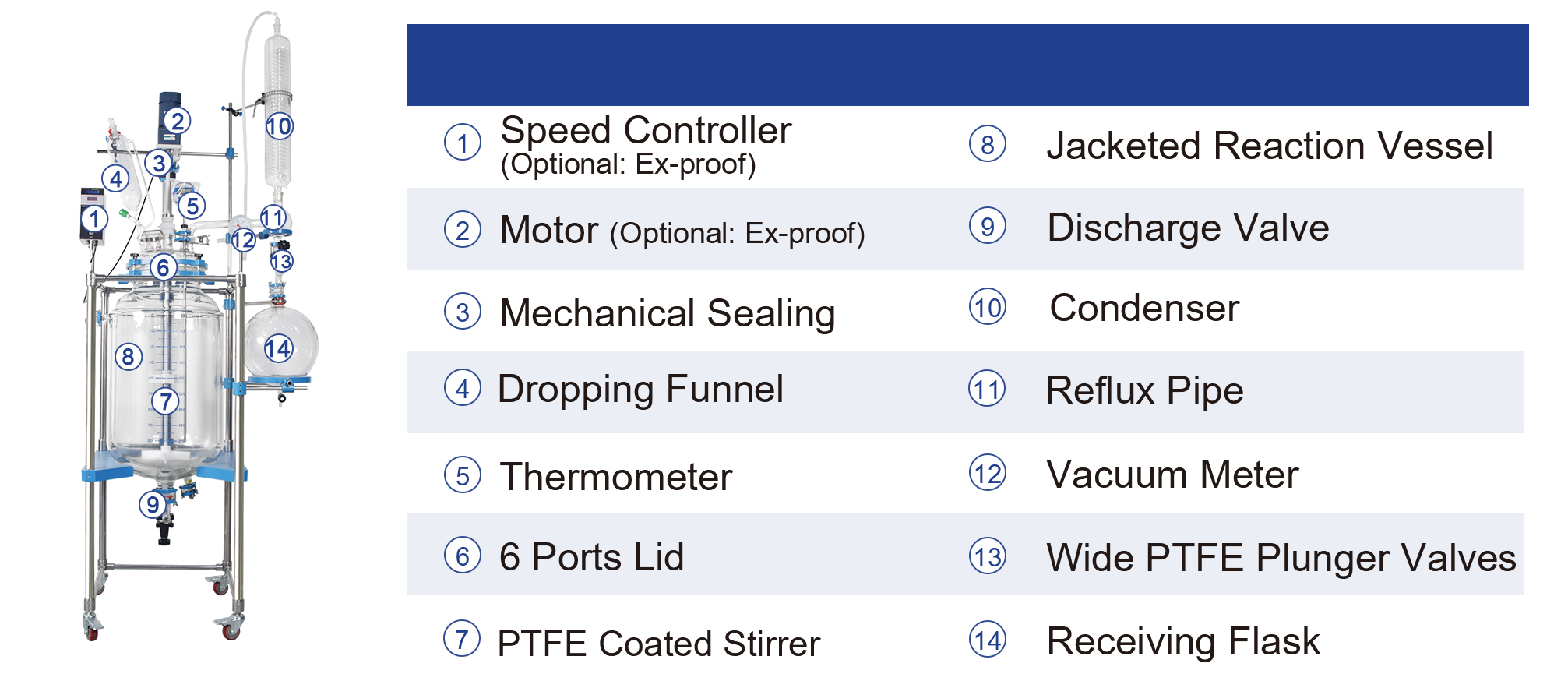

100L反应釜结构图

stainless steel reactor_10

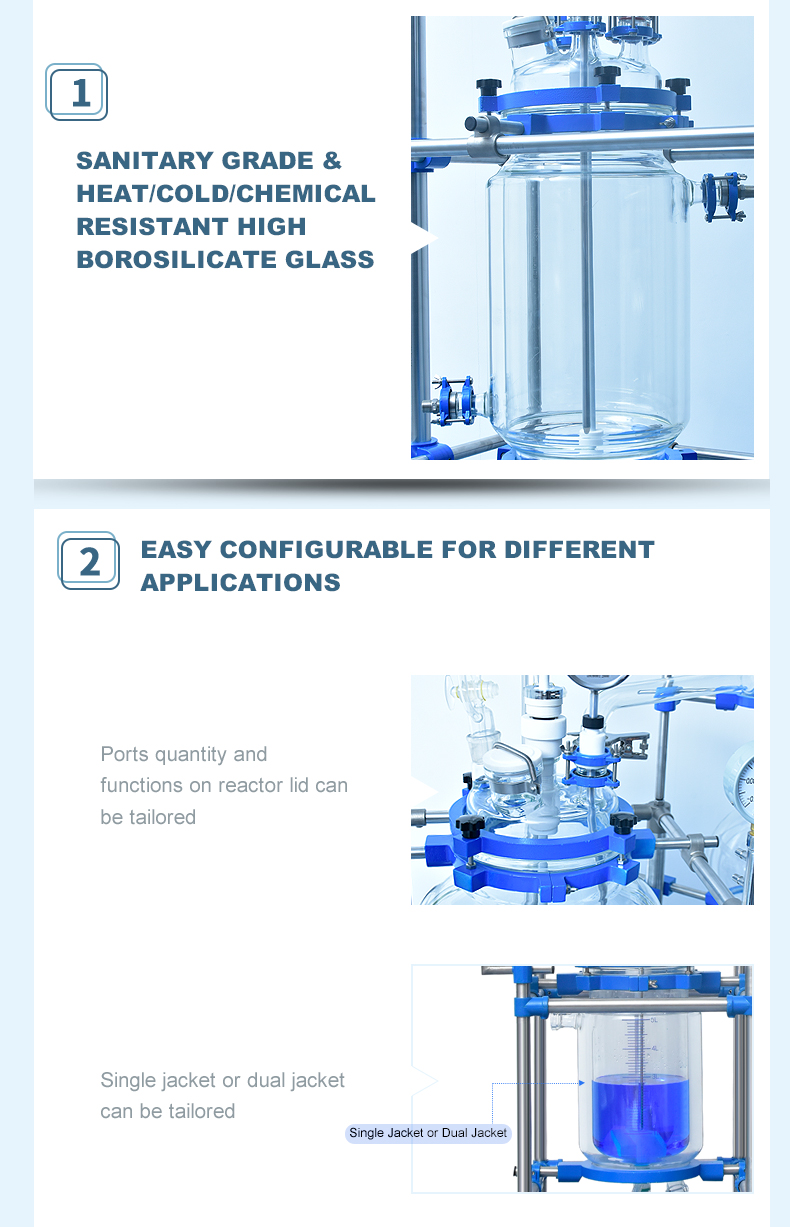

3-10L-100L反应釜_05

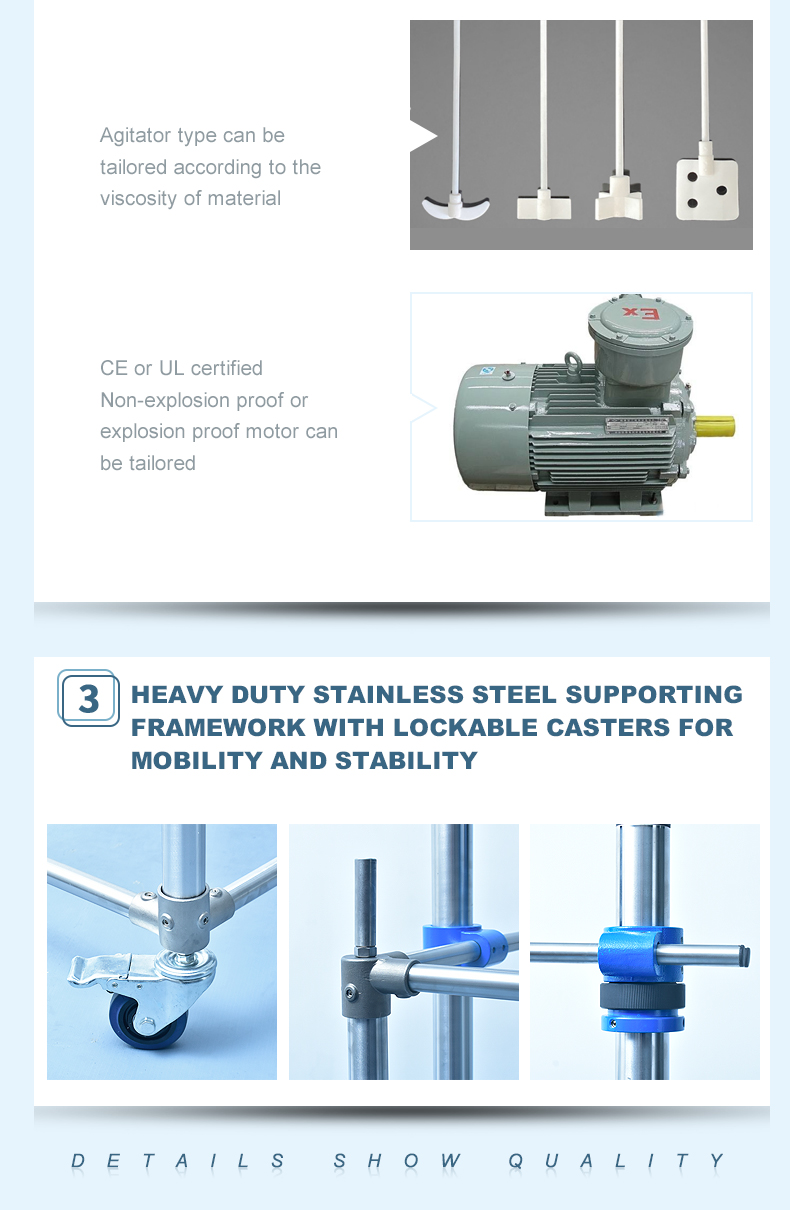

3-10L-100L反应釜_06

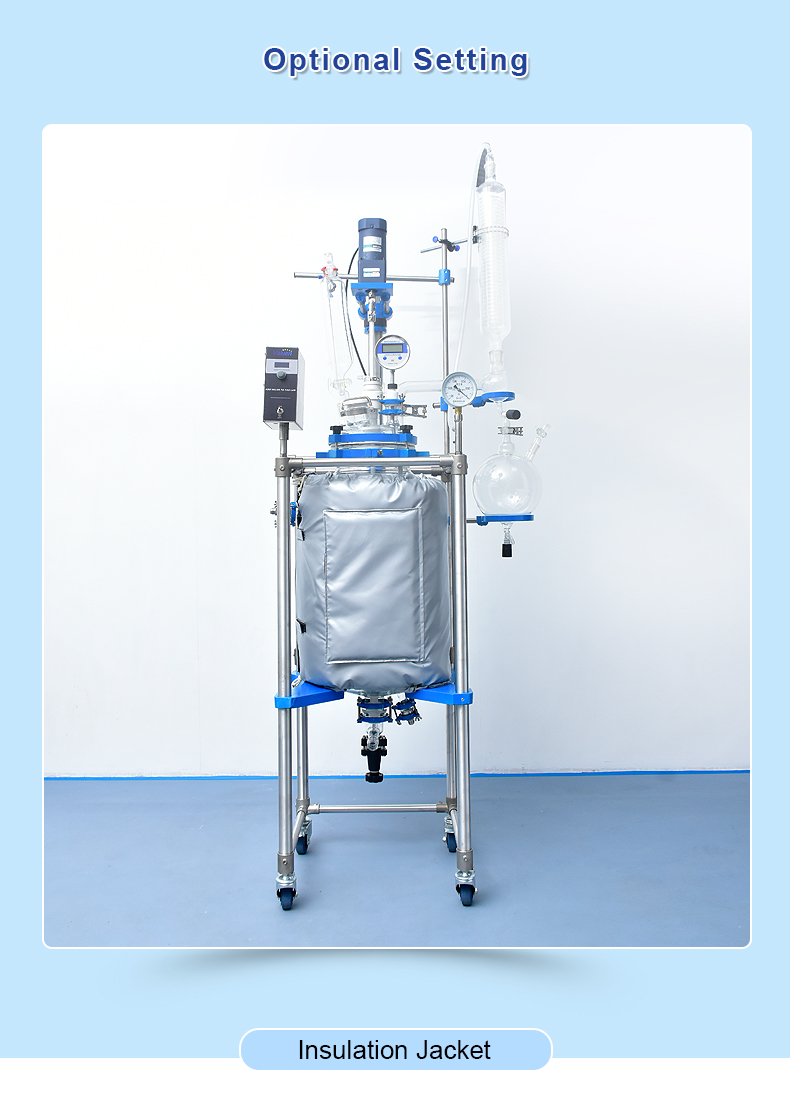

3-10L-100L反应釜_07

stainless steel reactor_13

stainless steel reactor_14

3-10L-100L反应釜_08

Model	VJR01G	VJR02G	VJR03G	VJR05G	VJR10G	VJR20G	VJR50G	VJR100G	VJR200G
Reaction Vessel Capacity	1L	2L	3L	5L	10L	20L	50L	100L	200L
Receiving Flask Capacity	0.25L	0.25L	0.25L	1L	5L	5L	10L	10L	20L
Jacket Capacity	0.5L	1L	1L	2L	6L	8L	13L	18L	60L
Jacket Quantity	Single Jacket						Single or Dual Jacket (customizable)
Glass Material	High Brosilicate Glass 3.3 (Sanitary grade & Heat/Cold/Chemical resistant)
Rotary Speed	0-500RPM
Working Temperature Range	-80°C to 250°C
Stirrer	1 stage PTFE coated stirrer (customizable)						2 stage PTFE coated stirrer (customizable)
Motor Power （with gear box)	90W				120W		200W		370W
Power Supply	110V or 220V, 50/60Hz, Single Phase
Vacuum Level	Under 0.098Mpa
Ports on Lid	5 Ports: Stirring port, Air inlet port, Liquid inlet port, Thermowell port and Condenser port (Customizable)				6 Ports: Stirring port, Air inlet port, Liquid inlet port, Thermowell port, Solids feeding port and Condenser port (Customizable)
Drain Valve	PTFE drain valve (zero dead end for throughly draining )
