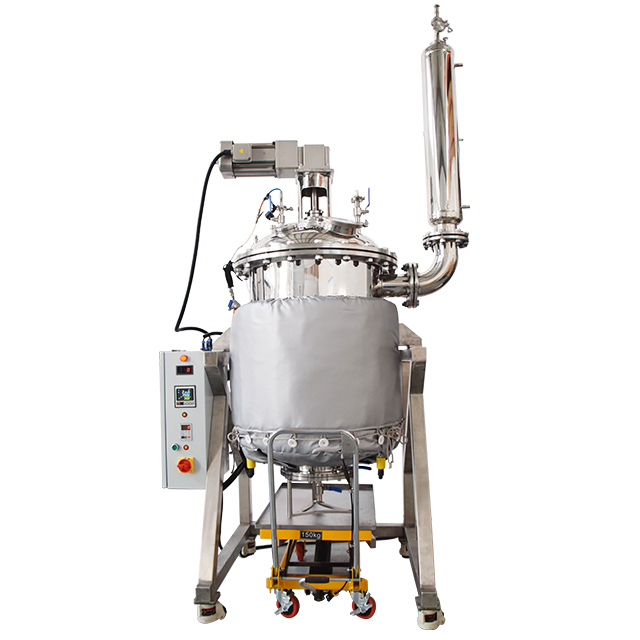

200L Jacketed Stainless Steel Extraction Reactor

200L Jacketed Stainless Steel Extraction Reactor

Stainless steel extraction reactor is a specialized industrial vessel designed for the efficient extraction of valuable compounds from raw materials. Made from high-grade stainless steel, these reactors offer superior corrosion resistance, durability, and thermal stability, making them ideal for use in demanding chemical processes.

Features:

Electrical Heating System: Ensures precise temperature control for stable extraction
Jacketed Design: Enhances heating efficiency and supports cooling with uniform heat transfer
Bottom Filtration: Provides efficient solid-liquid separation for pure extraction
Hydraulic Device Unloading: Enables quick discharge, reducing labor and boosting efficiency
Made of Sanitary Grade Durable SS304 &316L and Anti-Corrosive Sealing Parts
Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries
Optional Stirring Shield, providing protective barrier during stirring, minimizing splashes and exposure to hazardous materials, ensuring a safer and cleaner operation
Optional insulation thermal jacket can be used to insulate the vessel body to avoid heat loss


Availability:



Inquiry Email

Model:
VJER200S
Brand:
Valuen

Product Overview

Product Parameter

Product Details

About US

Jacketed Stainless Steel Extraction Reactor (With Electrical Heating, Bottol Filter, and Hydraulic Unloading Device)

Electrical Heating System: Ensures precise temperature control for stable extraction.

Jacketed Design: Enhances heating efficiency and supports cooling with uniform heat transfer.

Bottom Filtration: Provides efficient solid-liquid separation for pure extraction.

Hydraulic Device Unloading: Enables quick discharge, reducing labor and boosting efficiency.

stainless-steel-extraction-reactor_01

stainless-steel-extraction-reactor_02

stainless-steel-extraction-reactor_06

Model	VJER10S	VJER20S	VJER50S	VJER100S	VJER150S	VJER200S	VJER300S	VJER500S	VJER1000S
Reaction Tank Capacity	10L	20L	50L	100L	150L	200L	300L	500L	1000L
Jacket Quantity	Single jacket or Dual jacket with inner heating jacket and outer insulation jacket (customizable)
Stainless Steel Material	Sanitary Grade 316 or 304 Stainles Steel
Heating Mode (Optional)	2 Options: Built-in electrical heating device or Circulation jacket with heating fluid
Cooling Mode (Optional)	2 Options: Internal cooling condensers or Ciruculation jacket with cooling fluid
Working Temperature Range	-80°C to 350°C
Rotary Speed	0-500RPM				0-150RPM				0-120RPM
Stirrer	Sanitary Grade 316 or 304 Stainles Steel (Standard: Frame Steel; Customizable)
Stirring Motor Power	200W		370W	750W		1100W		2200W	3000W
Heating Power if with Inner Electrical Heating Device (Optional)	3KW	3KW	6KW	12KW	18KW	27KW	27KW	30KW	Not recommended
Control Panel	Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch
Power Supply	110V or 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase
Ports on Lid	7 Ports: feeding port, condenser port, stirring port, sight glass port, vacuum gauge port,2 spare ports (customizable)

Product Details

High Quality Stainless steel

Contact parts of machine are completely made of food grade stainless steel 304/316L, mirror surface.
Hydraulic Unloading Device

Features a hydraulic unloading system for easy and rapid discharge of large volumes of material, reducing labor intensity and improving production efficiency.
Bottom Filter

Equipped with a high-efficiency filter for convenient and quick solid-liquid separation, ensuring the purity of the extracted liquid.
Electric Heating tubes

Offering quick heat-up times, ensuring that the desired temperature is reached rapidly, and providing high energy efficiency.
Stirring Shield

Provides a protective barrier during stirring, minimizing splashes and exposure to hazardous materials, ensuring a safer and cleaner operation.
Insulating Jacket - Optional

Optional thermal insulation jacket can be used to insulate the vessle body to avoid heat loss.
