30L Liftable And Rotary Jacketed Stainless Steel Reactor

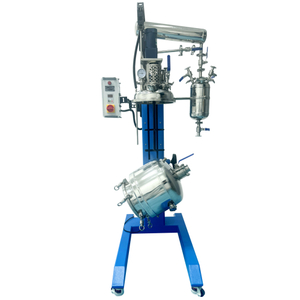

50L Liftable And Rotary Jacketed Stainless Steel Reactor

20L Liftable And Rotary Jacketed Stainless Steel Reactor

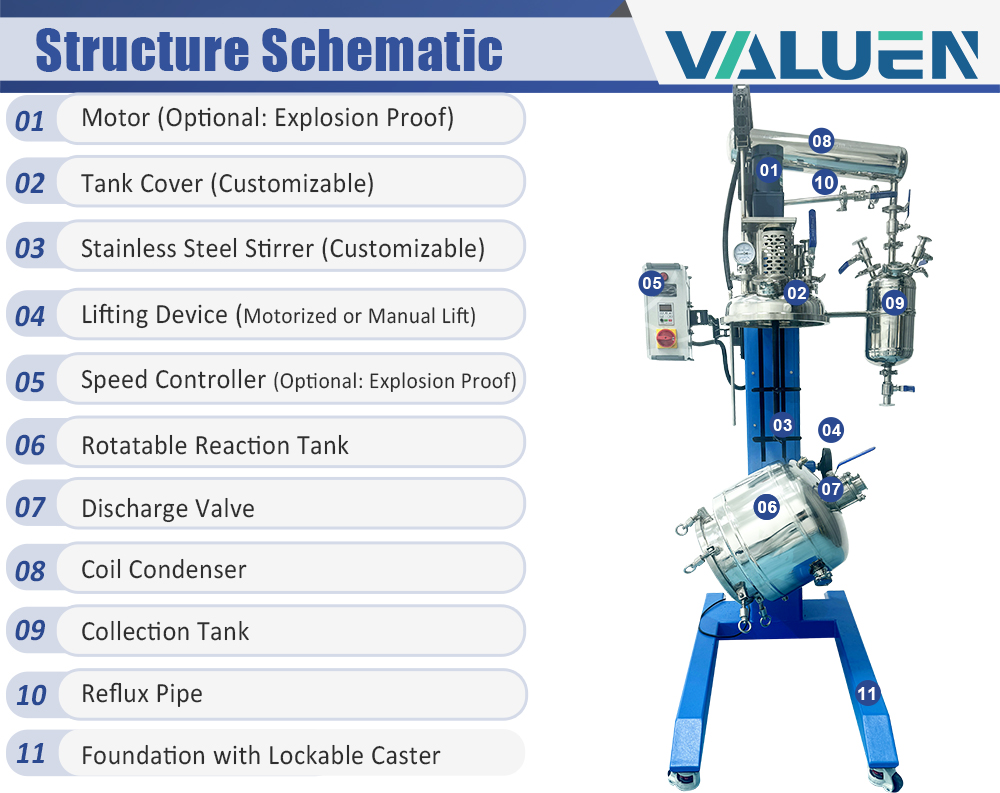

Each stainless steel jacketed reactor consists of stainless steel reaction vessel, sealing, agitation, temperature probe and digital display, and other accessories like coiled condenser, bottom discharge valve, etc.

Motorized or Manual Lift to Elevating Lid and Stirrer
Made of Sanitary Grade Durable SS304 &316L and Anti-Corrosive Sealing Parts
Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries
Quicky Set-Up And Easy Maintenance
Detachable And Volume-Customizable Condenser And Collection Tanks
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
Easy Configurable for Different Application
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability


Availability:



Inquiry Email

Model:
VJR20S(D)
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

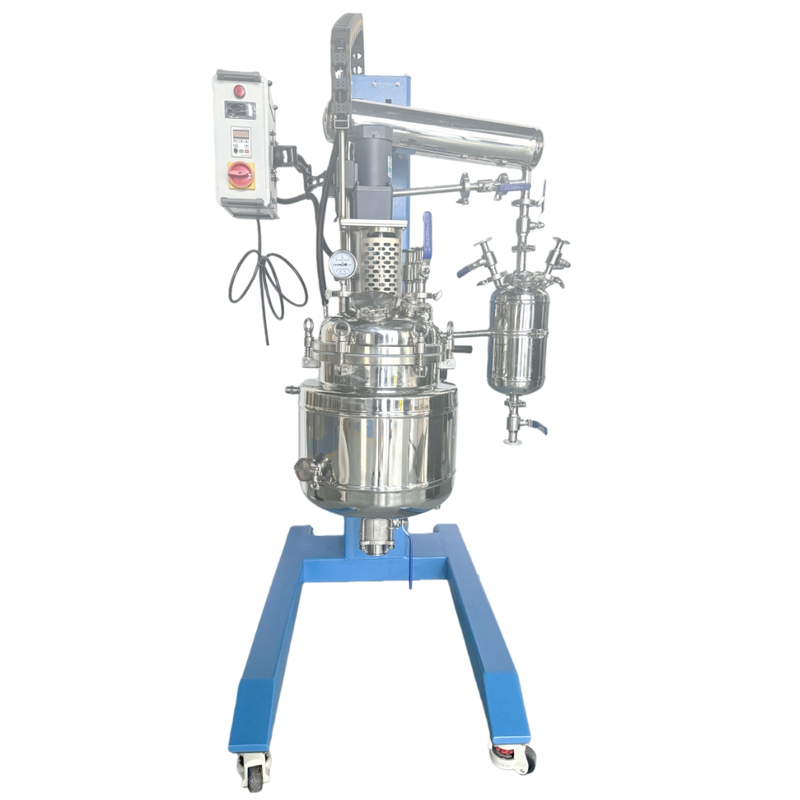

20L Liftable And Rotary Jacketed Stainless Steel Reactor

- Sanitary grade durable 316 & 304 stainless steel jacketed stainless steel reactor

- Motorized or Manual Lifting to Elevating Lid, Condenser and Collection Tank

- Rotatable Reaction Vessel, Making It Easier To Discharging and Cleaning

- Electropolished internal tank, fit for standard of food and pharmaceutical industries

- Quicky set-up and easy maintenance stainless steel reactor

- Detachable and volume-customizable condenser and collection tank

- Solvent-resistant PTFE on all sealing components ensures long time durability and operation

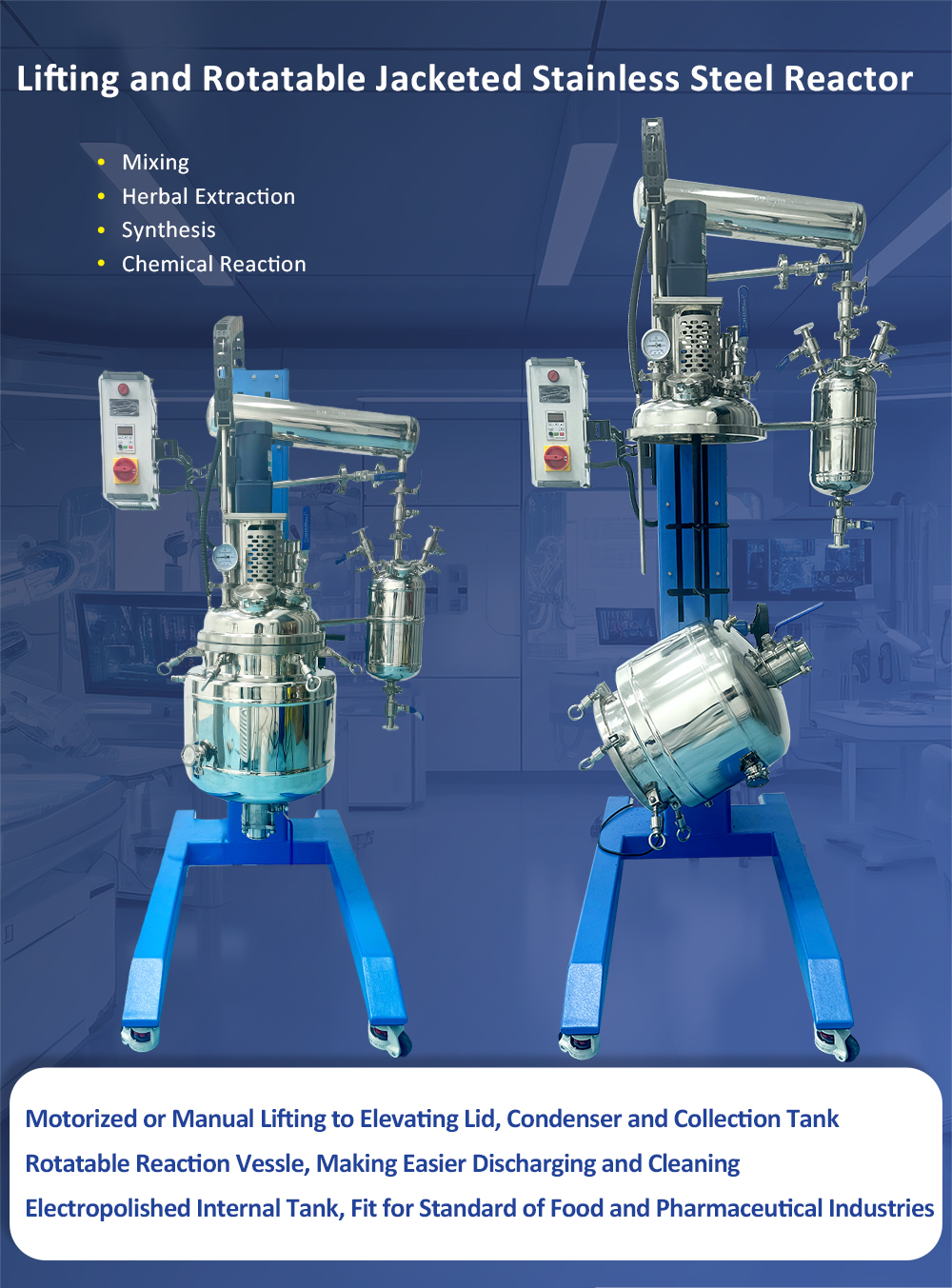

stainless steel lifting reactor (1)

Product Details

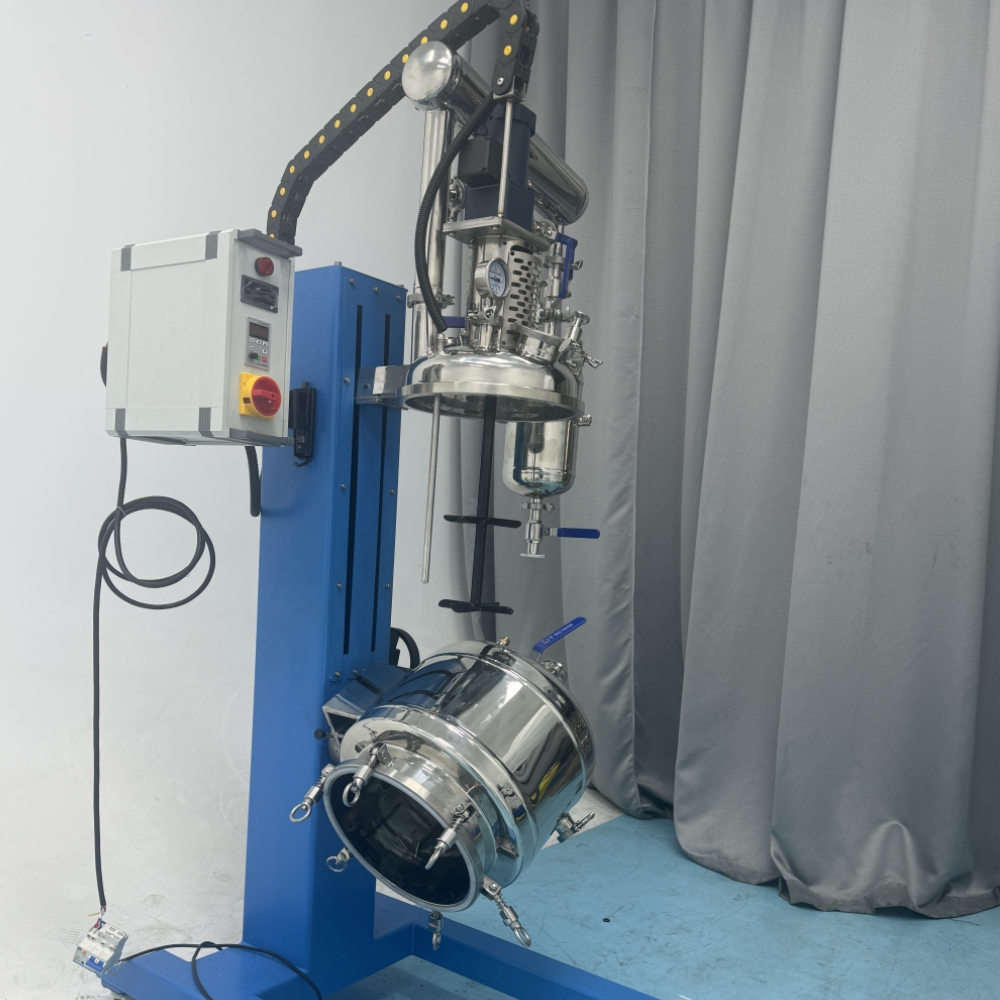

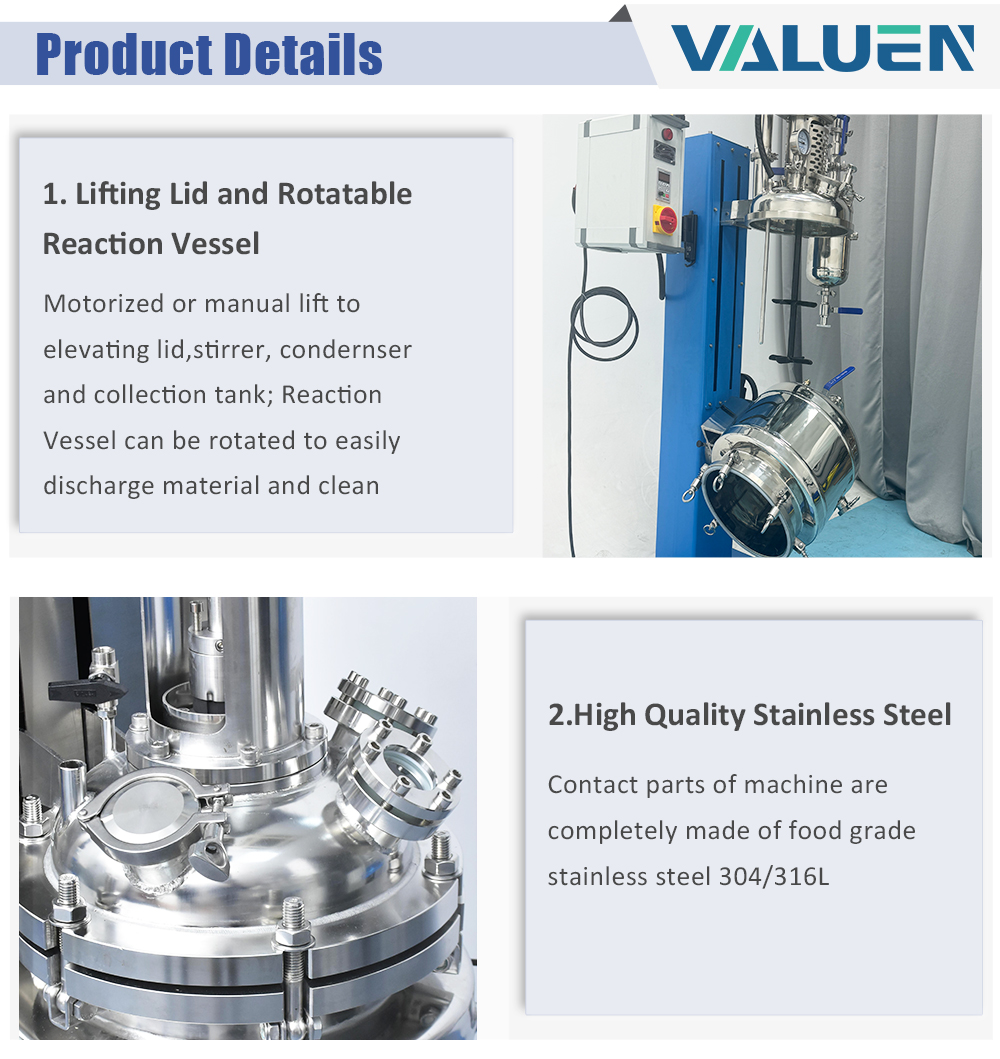

Liftable Cover and Rotary Tank

Motorized or manual lift to elevating lid and stirrer; tank can be rotated to easily discharge material
High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L

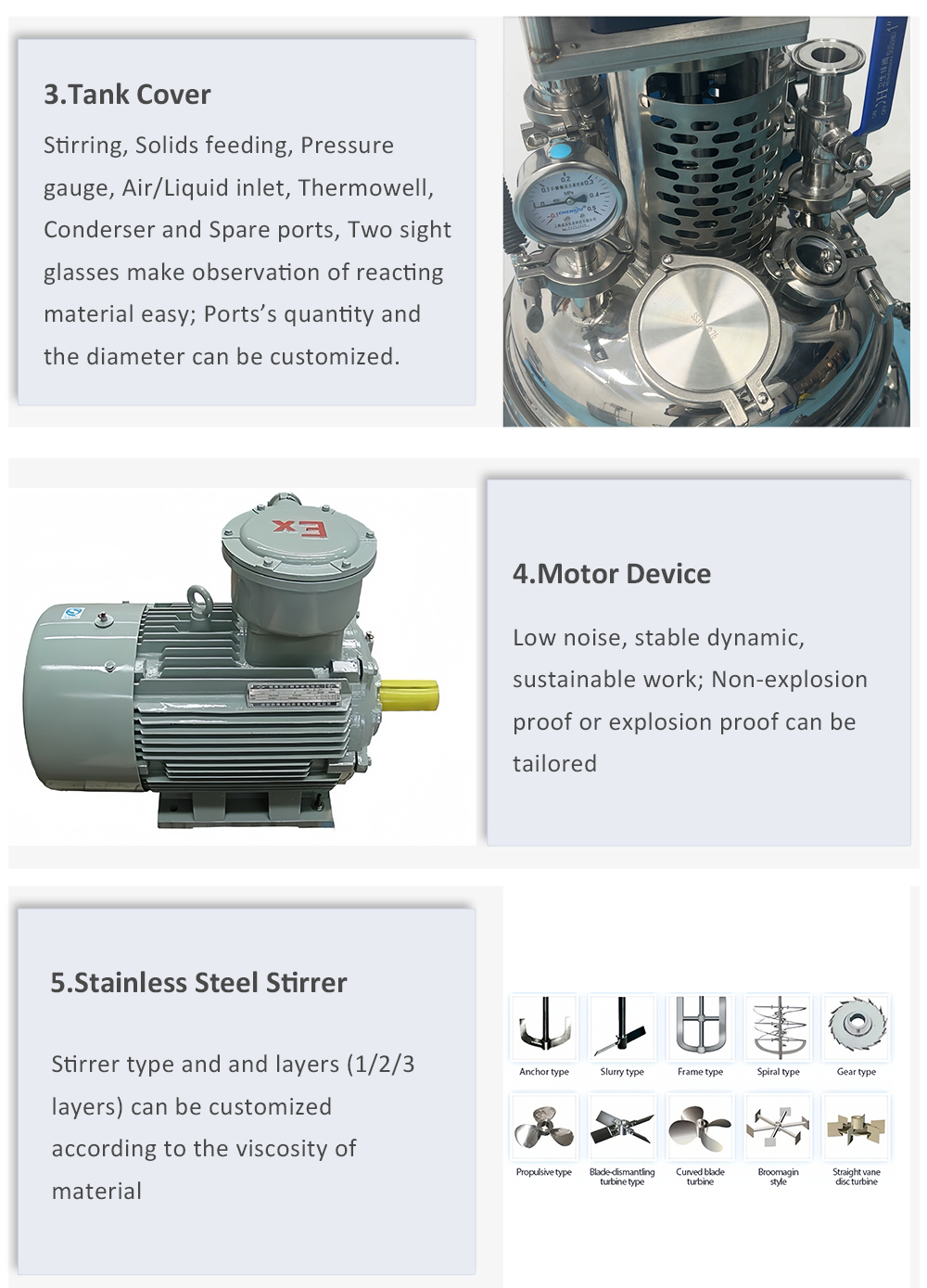

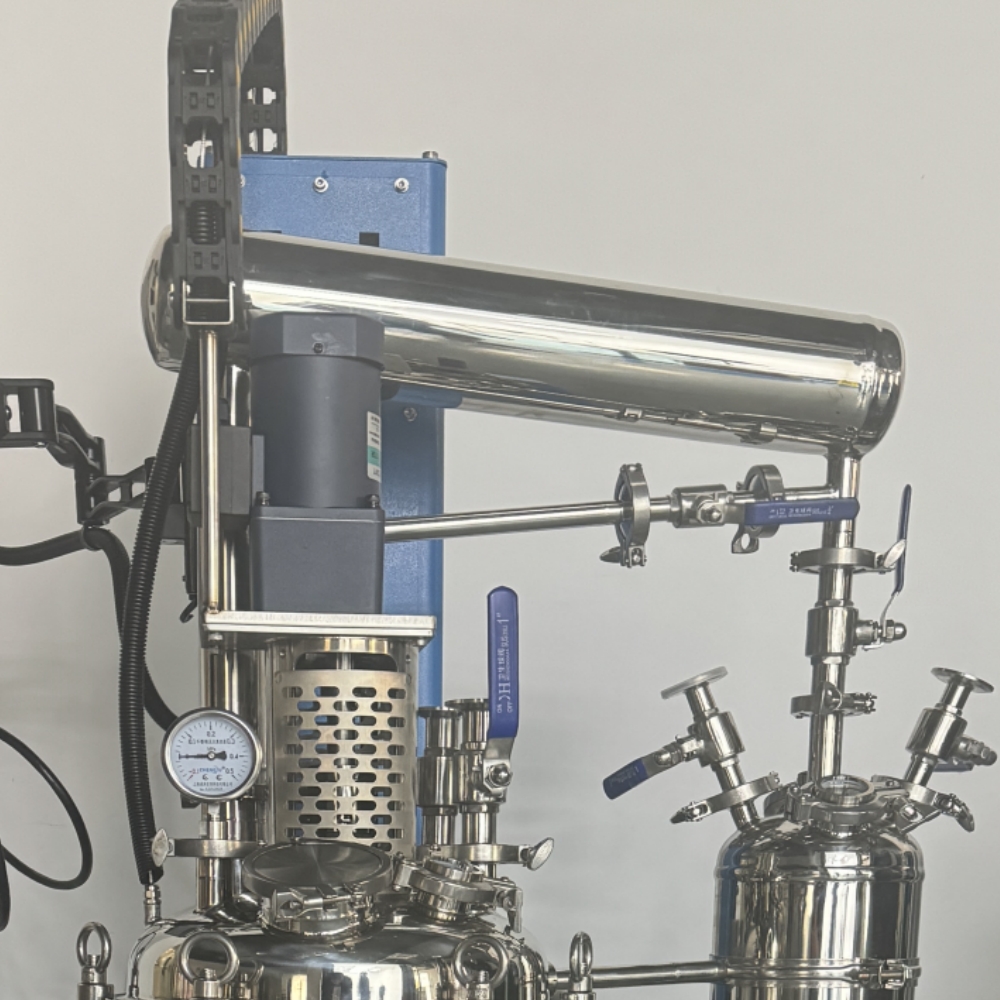

Tank Cover

Sight window makes observation of reacting material easy; Ports and the caliber can be customized
Motor Device

Low noise, stable dynamic, sustainable work; Non-explosion proof or explosion proof can be tailored
SS Agitator

Agitator type and and layers (1/2/3 layers) can be tailored according to the viscosity of material

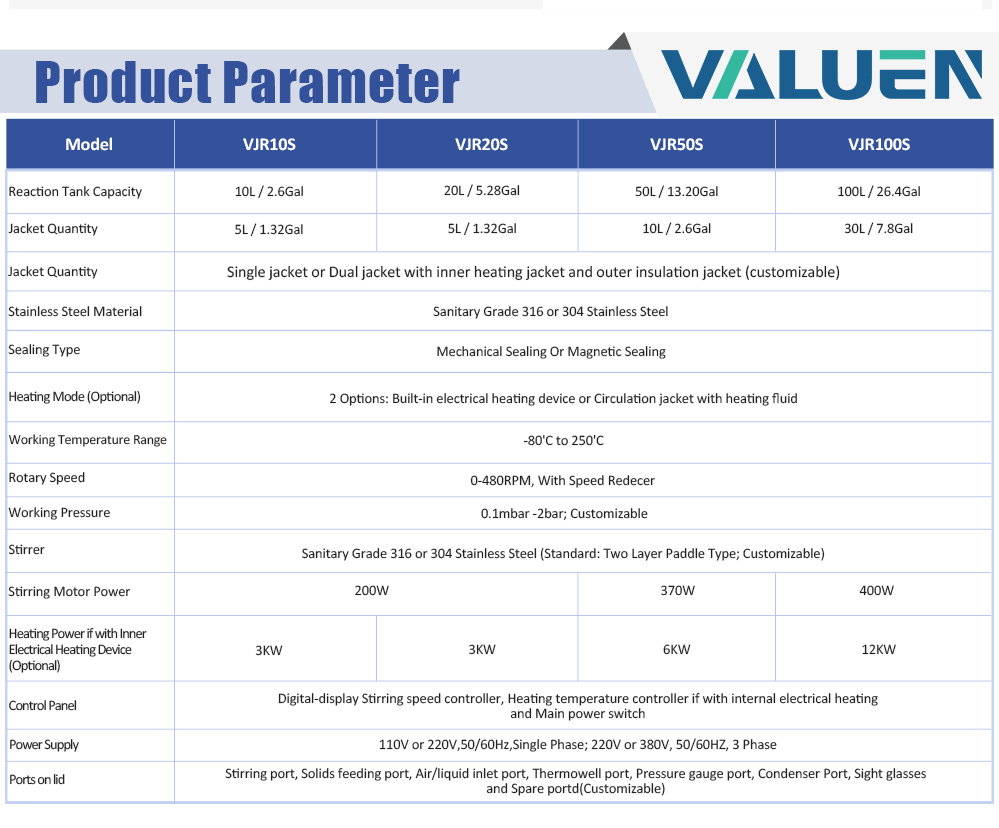

Model	VJR10S	VJR20S	VJR50S	VJR100S
Reaction Tank Capacity	10L / 2.6Gal	20L / 5.28Gal	50L / 13.20Gal	100L / 26.4Gal
Jacket Quantity	Single jacket or Dual jacket with inner heating jacket and outer insulation jacket (customizable)
Stainless Steel Material	Wet parts: Sanitary Grade 316 Stainles Steel Outernal parts and Frame: Sanitary Grade 304 Stainless Steel (customizable)
Sealing Type	Mechanical Sealing or Magnetic Sealing
Heating Mode (Optional)	2 Options: Built-in electrical heating device or Circulation jacket with heating fluid
Working Temperature Range	-80°C to 250°C
Rotary Speed	0-480RPM, with Speed Reducer
Stirrer	316 Stainless Steel Stirrer (shape and layer quantities are customizable)
Stirring Motor Power	120W		200W	400W
Heating Power if with Inner Electrical Heating Device (Optional)	3KW	3KW	6KW	12KW
Control Panel	Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch
Power Supply	110V or 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase
Vacuum Level	-0.1mbar~2bar; Customizable
Condensation Area	0.5m²		1.0m²	1.5m²
Ports on Lid	6 Ports: Stirring port, Solids feeding port, Air/Liquid inlet port, Thermowell port, Vacuum gauge port, Condenser port, Two sight glassed and Spare port (Customizable)
