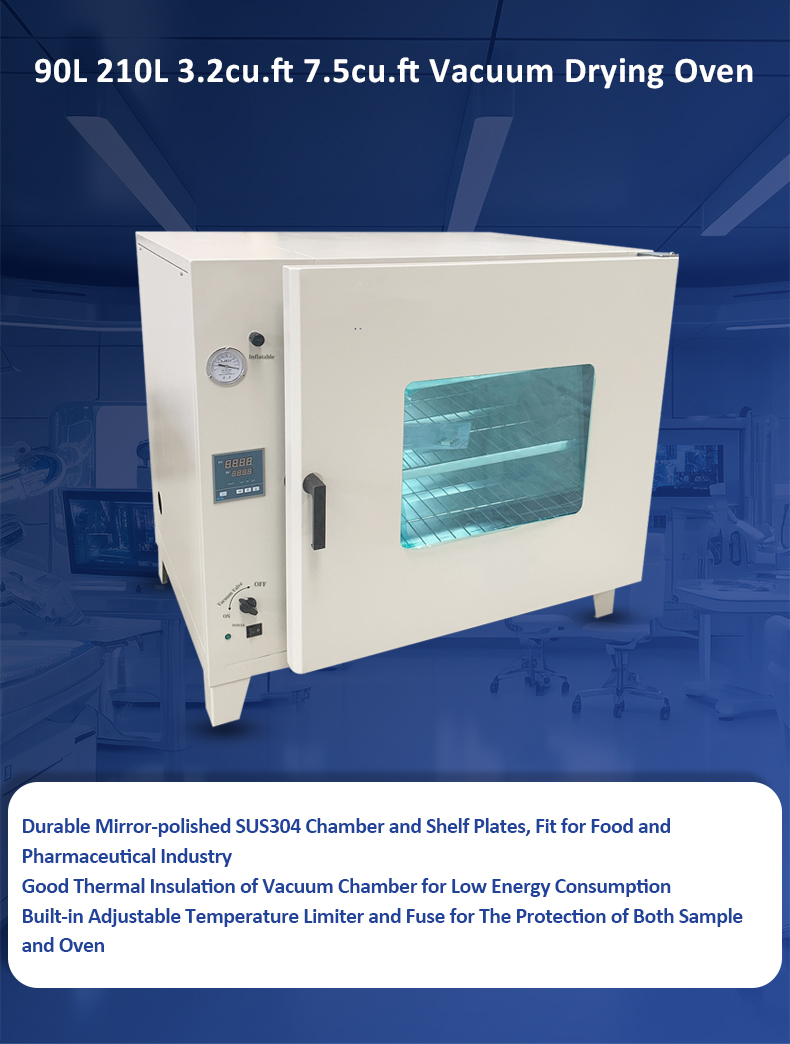

90L 210L 3.2cu.ft 7.5cu.ft Vacuum Drying Oven

Working Principle:

Vacuum drying oven is made up of stainless steel that can bear the high vacuum pressure without any kind of deformation. They are divided into hollow trays which increases the surface area for heat conduction. The materials to be dried are kept on the trays inside the vacuum dryer and pressure is reduced by means of vacuum pump. The dryer door is tightly shut and steam is passed through the space between trays and jacket so that the heat transfer occurs by conduction.

Features:

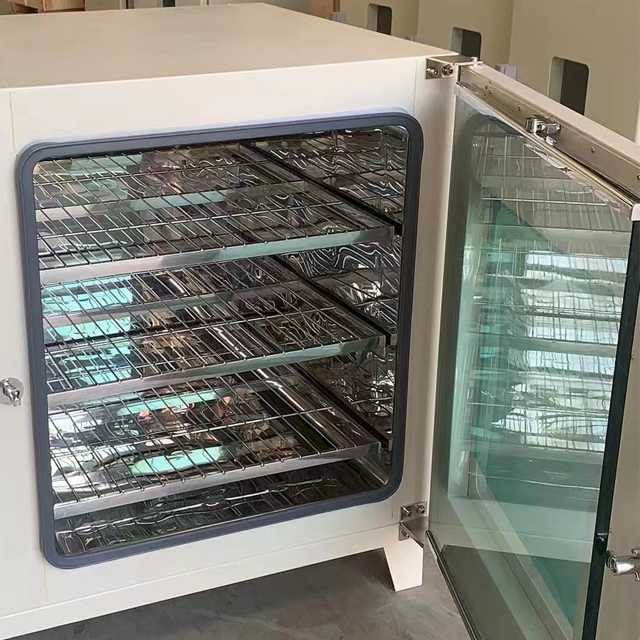

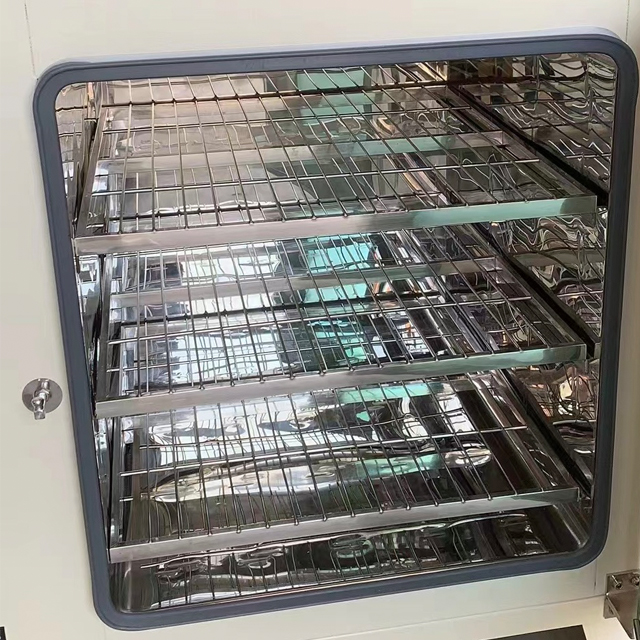

Durable mirror-polished SUS304 chamber and shelf plates, Fit for Food and Pharmaceutical Industry
Good thermal insulation of vacuum chamber for low energy consumption
Built-in adjustable temperature limiter and fuse for the protection of both sample and oven


Availability:



Inquiry Email

Model:
VOO-90
Brand:
Valuen

Product Overview

Product Parameter

About US

Valuen's vacuum drying ovens are built with polished stainless steel interior, removable racks, overheat protection, inert gas inlet, temp calibration, timing and other functions. All ovens are CE compliant.

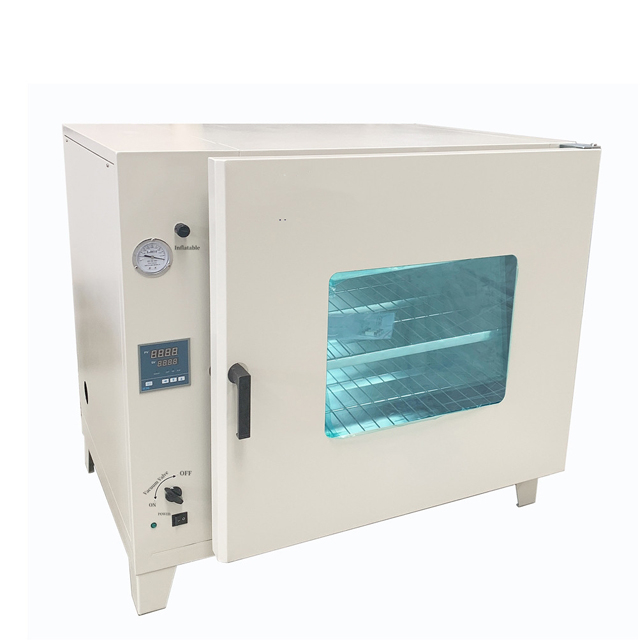

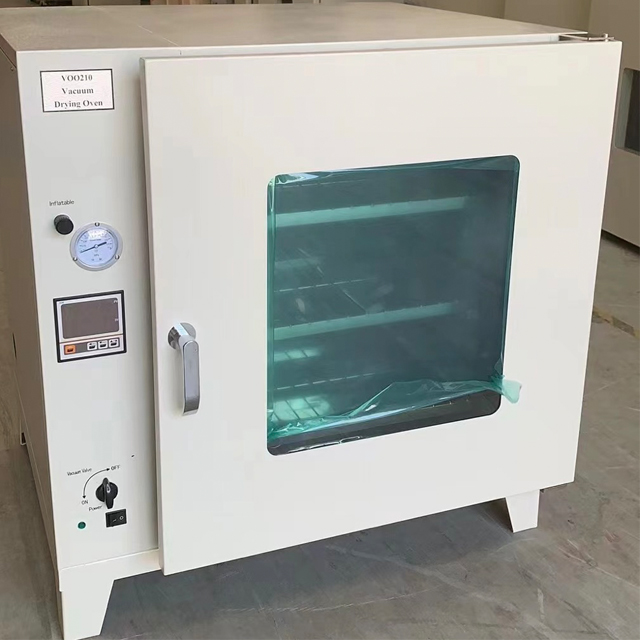

90&210L vacuum drying oven

vacuum drying oven

Model	VOO25	VOO53	VOO90	VOO210	VOO500
Chamber Volume	0.9cu.ft (25 Litre)	1.9cu.ft (53 Litre)	3.2 cu.ft (90 Litre)	7.5 cu.ft (210 Litre)	17.6 cu.ft (500 Litre)
Voltage	110V or 220V, 50/60Hz, Single phase				380V or 480V,3 phase
Power	500W	1500W	2000W	4000W	5500W
Chamber Material	Sanitary Grade Stainless Steel 304, Mirror Surface
No. of shelves	2-4 pcs	2-5 pcs	3pcs	5pcs	7pcs

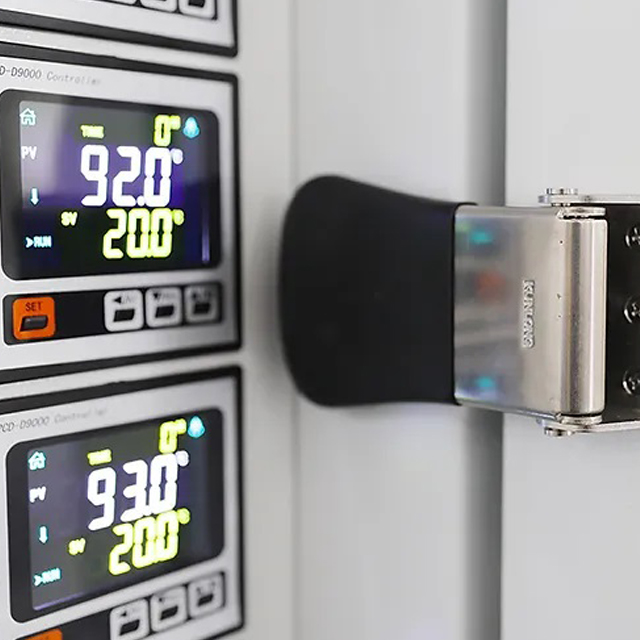

Controller	Integral Temperatur Control for all shelves		Independent Temperature Controller for each shelf
Temperature Range	Ambient + 5°C to 250°C	Ambient + 5°C to 250°C	Ambient + 5°C to 200°C	Ambient + 5°C to 200°C	Ambient + 5°C to 200°C
Temperature Control Accuracy	+/- 0.5°C
End Vacuum Level	<133 Pa (1 mmHg)
Max Leak Rate	<0.01 bar/h
Max Heating Rate	5-9°C/min
