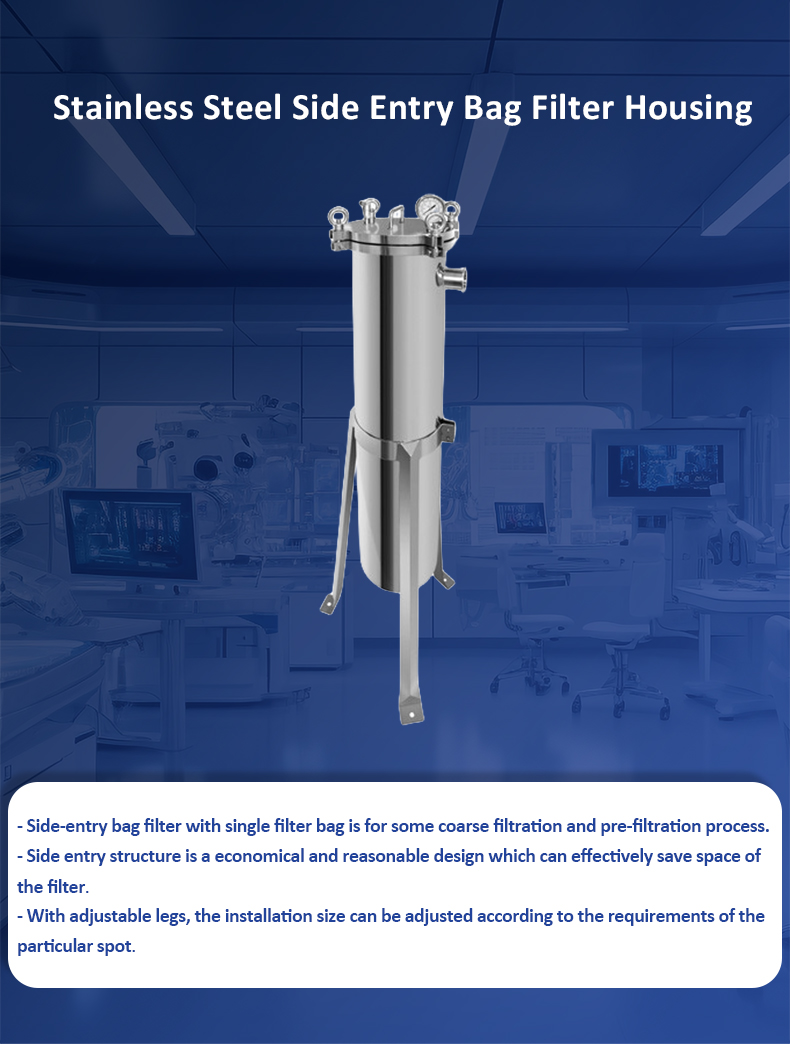

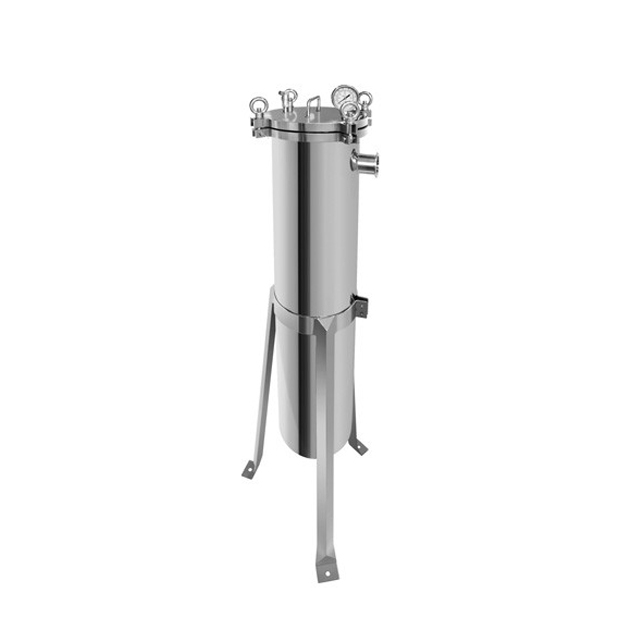

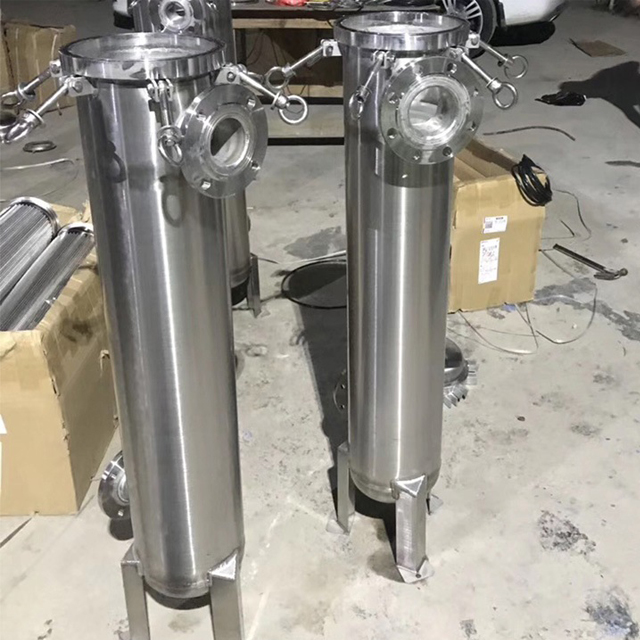

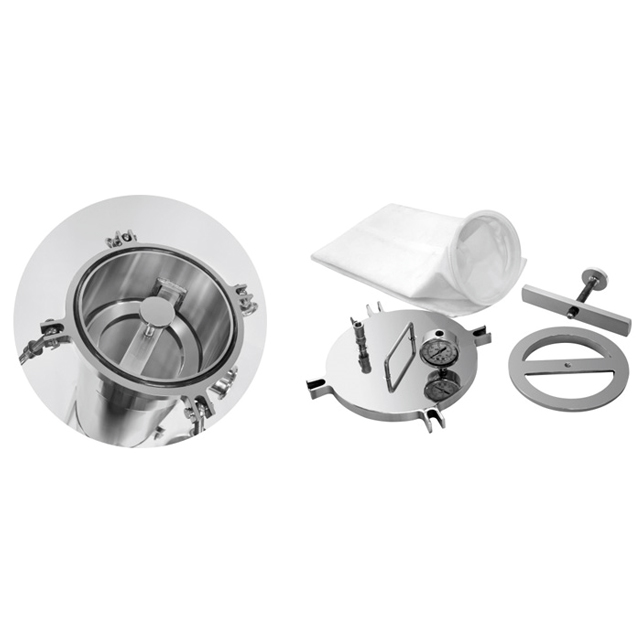

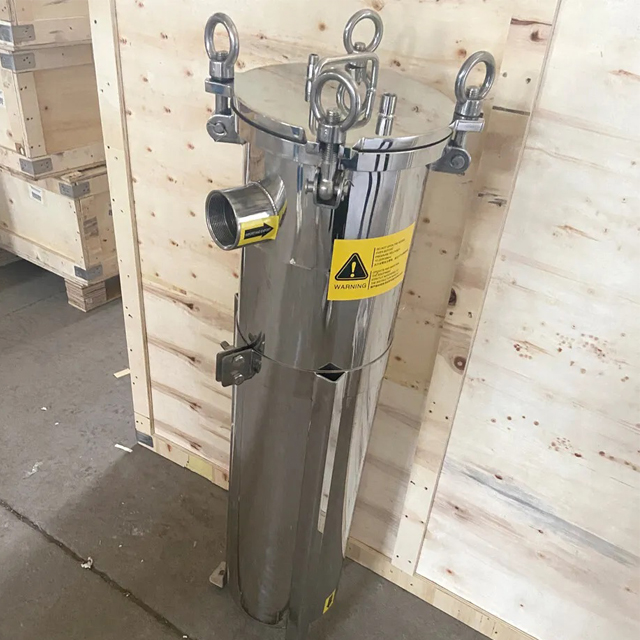

Stainless Steel Side Entry Bag Filter Housing

Features:

Side-entry bag filter with single filter bag is for some coarse filtration and pre-filtration process.
Side entry structure is a economical and reasonable design which can effectively save space of the filter.
With adjustable legs, the installation size can be adjusted according to the requirements of the particular spot.

Applications:

Microbe and solid filtration of alcohol, syrup, beer
Removal of suspended matter, contaminants, particle from water
Filtration of liquid lubricants, coolants and lubricants
Removal of suspended matter, sediment and other impurities from crude oil, natural gas and fuels
Textile, printing and dyeing, paper purification


Availability:



Inquiry Email

Model:
Side Entry Bag Filter Housing
Brand:
Valuen

Product Overview

Product Parameter

About US

Side-entry bag filter with single filter bag is for some coarse filtration and pre-filtration process.

Side entry structure is a economical and reasonable design which can effectively save space of the filter

With adjustable legs, the installation size can be adjusted according to the requirements of the particular spot

bag filter housing

	#1	#2	#3	#4
Bag Size (mm)	φ180*430	φ180*810	φ105*230	φ105*380
Max Flow (m³/h)	20	40	6	12
Shell Height (mm)	990	1365	525	635
Shell Diameter (mm)	Φ204	Φ204	Φ114	Φ114
Stabilizer Blade (mm)	500	800	300	400
Bag Pore Size	0.5, 1, 3, 5, 10, 25, 50, 80, 100, 200μm
Max Operating Pressure	0.6MPa, 1.0MPa
Max Operating Temperature	150℃
Shell Material	304 or 316L Stainless Steel
O-ring Material	EPDM, PTFE, Viton, Silicone
